Alternative to Belden 9501 Cable
Alternative to Belden 9501 Cable

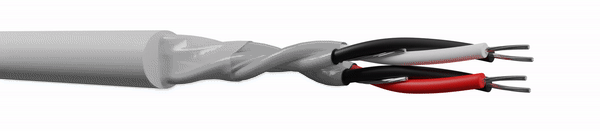

Overall screened multipair data cable RS232, widely used for computers, point of sale, control systems and RS232 applications. This is a general purpose overall screened twisted paired cable.
- CPR-Compliant options
- High quality alternative to genuine Belden
- Cut to length required
- LSF or LSZH sheath
- External grade also available
24AWG
Tinned copper conductor 24(7) AWG, 0.22mm², LSF or LSZH insulation, colour chart 3. Twisted into pairs, overall aluminium/polyester foil screen, tinned copper drain wire (24AWG), LSF, LSZH or PE.
| Voltage Rating: | 300V |
| CE: | 450/750V† |
| Capacitance 24AWG: | |
| Core to core: | 131 pF/m |
| Core to screen: | 243 pF/m |
| UL Style*: | 2464 |
| Colour Code: | Chart 3 |
*UL style numbers are given for cross reference purposes only. Not all the cables on this page are tested to or approved by UL. If you require UL approved versions please tell us when you first enquire.
† Applies to CE marked FSC branded stock only.
