H07RN-F Rubber Cable
H07RN-F Rubber Cable
Used extensively for trailing and flexible supply leads in either single or multicore versions, these H07RN-F rubber cables remain flexible even at sub-zero temperatures.
H07RN-F rubber cables use neoprene (PCP) for its sheath. The improved abrasion resistance and the ability to withstand many oils and chemicals make the neoprene sheathed H07RN-F cables suitable for the most arduous conditions.
CPR-Compliant options are available for this cable and are indicated in the product table. For the latest information on CPR for Cables, you can visit our dedicated CPR Explained web page. We have created a series of short CPR to break down all the significant areas and have updated our 'CPR for Cables' guide, available for you to download.

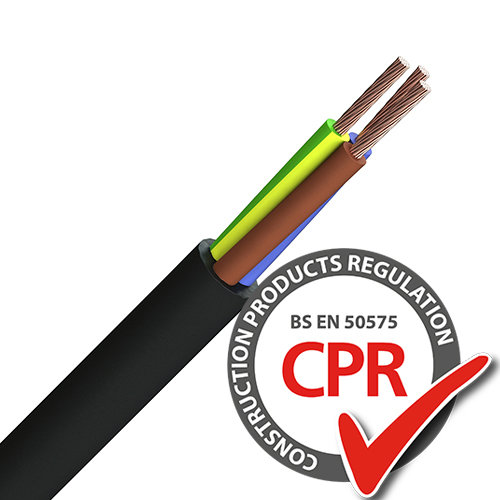

Image representative of product style, product supplied may vary.
- CPR-Compliant options
- Neoprene (PCP) ensures flexibility even at low temperatures
- Abrasion resistance and the ability to withstand many oils and chemicals
- Class 5 stranding
- Wide range of core configurations
| Voltage Rating: | Working: 450/750V, Test: 3000V. |
| Temperature Rating: | -20°C to +60°C. Static: +85°C |
| Bending Radius: | |
| Flexing: | 15 x cable diameter |
| Static: | 6 x cable diameter |
| Current Rating: | H07RN-F Refer to IEE Regs Table 4F1A&B |
| Conductor Stranding: | To IEC 60228 Class 5 & VDE 0295 Class 5 |
G = With Green/Yellow X = Without Green/Yellow
The overall diameter given has been taken from measuring actual cables, however rubber cables vary considerably in diameter from one manufacturer to another. If the diameter is critical, please ask at time of order and we will check the stock you will be sent.
Also available in a special blue sheathed version suitable for use in drinking water.
Fine copper wire strands to IEC 60228 class 5. Rubber insulation colour coded to BS 7671/HD 308 S2 (cables with over 5 cores, A07RN-F, are number coded). Cores twisted together. Black neoprene (PCP) outer sheath to BS 7919:2001 table 14.
Portable saws, grinders, welders, pumps, transformers, as temporary lighting cable and feed cable to heavy mobile equipment. Single cores and large multicores are often used as distribution cables from mobile generators.
Order by 4.30pm for delivery by
| Code | Description | Cores | mm² | Colour | Sheath | CPR | Downloads | Pack Size | QTY | Price | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 57101002-E00 |
2 x 1.0mm² H07RN-F Black Neoprene
|
2 | 1 | Black | Neoprene | Eca | Datasheet |
£78.00
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57101003-E00 |
3 G 1.0mm² H07RN-F Black Neoprene
|
3 | 1 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57101004E-E00 |
4 G 1.0mm² H07RN-F Black Neoprene
|
4 | 1 | Black | Neoprene | Eca | Datasheet |
£156.00
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57101005E-E00 |
5 G 1.0mm² H07RN-F Black Neoprene
|
5 | 1 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57101501-E00 |
1 x 1.5mm² H07RN-F Black Neoprene
|
1 | 1.5 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57101502-E00 |
2 x 1.5mm² H07RN-F Black Neoprene
|
2 | 1.5 | Black | Neoprene | Eca | Datasheet |
£101.00
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57101503-E00 |
3 G 1.5mm² H07RN-F Black Neoprene
|
3 | 1.5 | Black | Neoprene | Eca | Datasheet |
£156.00
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57101504E-E00 |
4 G 1.5mm² H07RN-F Black Neoprene
|
4 | 1.5 | Black | Neoprene | Eca | Datasheet |
£0.00
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57101505E-E00 |
5 G 1.5mm² H07RN-F Black Neoprene
|
5 | 1.5 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57101507-E00 |
7 G 1.5mm² H07RN-F Black Neoprene
|
7 | 1.5 | Black | Neoprene | Eca | Datasheet |
£330.21
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57101512-E00 |
12 G 1.5mm² H07RN-F Black Neoprene
|
12 | 1.5 | Black | Neoprene | Eca | Datasheet |
£515.85
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57101519-E00 |
19 G 1.5mm² A07RN-F Black Neoprene
|
19 | 1.5 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57101527-E00 |
27 G 1.5mm² A07RN-F Black Neoprene
|
27 | 1.5 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57101537-E00 |
37 G 1.5mm² A07RN-F Black Neoprene
|
37 | 1.5 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57102501-E00 |
1 x 2.5mm² H07RN-F Black Neoprene
|
1 | 2.5 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57102502-E00 |
2 G 2.5mm² H07RN-F Black Neoprene
|
2 | 2.5 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57102503-E00 |
3 G 2.5mm² H07RN-F Black Neoprene
|
3 | 2.5 | Black | Neoprene | Eca | Datasheet |
£230.00
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57102504E-E00 |
4 G 2.5mm² H07RN-F Black Neoprene
|
4 | 2.5 | Black | Neoprene | Eca | Datasheet |
£0.00
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57102505E-E00 |
5 G 2.5mm² H07RN-F Black Neoprene
|
5 | 2.5 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57102507-E00 |
7 G 2.5mm² H07RN-F Black Neoprene
|
7 | 2.5 | Black | Neoprene | Eca | Datasheet |
£581.80
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57102512-E00 |
12 G 2.5mm² H07RN-F Black Neoprene
|
12 | 2.5 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57102519-E00 |
19 G 2.5mm² H07RN-F Black Neoprene
|
19 | 2.5 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57102527-E00 |
27 G 2.5mm² A07RN-F Black Neoprene
|
27 | 2.5 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57102537-E00 |
37 G 2.5mm² A07RN-F Black Neoprene
|
27 | 2.5 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57104001-E00 |
1 x 4.0mm² H07RN-F Black Neoprene
|
1 | 4 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57104002-E00 |
2 G 4.0mm² H07RN-F Black Neoprene
|
2 | 4 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57104003-E00 |
3 G 4.0mm² H07RN-F Black Neoprene
|
3 | 4 | Black | Neoprene | Eca | Datasheet |
£321.95
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57104004E-E00 |
4 G 4.0mm² H07RN-F Black Neoprene
|
4 | 4 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57104005E-E00 |
5 G 4.0mm² H07RN-F Black Neoprene
|
5 | 4 | Black | Neoprene | Eca | Datasheet |
£462.29
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57106001-E00 |
1 x 6.0mm² H07RN-F Black Neoprene
|
1 | 6 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57106003-E00 |
3 G 6.0mm² H07RN-F Black Neoprene
|
3 | 6 | Black | Neoprene | Eca | Datasheet |
£400.00
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57106004E-E00 |
4 G 6.0mm² H07RN-F Black Neoprene
|
4 | 6 | Black | Neoprene | Eca | Datasheet |
£475.80
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57106005E-E00 |
5 G 6.0mm² H07RN-F Black Neoprene
|
5 | 6 | Black | Neoprene | Eca | Datasheet |
£456.00
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57110001-E00 |
1 x 10mm² H07RN-F Black Neoprene
|
1 | 10 | Black | Neoprene | Eca | Datasheet |
£200.21
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57110003-E00 |
3 G 10mm² H07RN-F Black Neoprene
|
3 | 10 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57110004E-E00 |
4 G 10mm² H07RN-F Black Neoprene
|
4 | 10 | Black | Neoprene | Eca | Datasheet |
£970.45
-
+
Please select a packsize
|
|||||||
|
|||||||||||||||
| 57110005E-E00 |
5 x 10mm² H07RN-F Black Neoprene
|
5 | 10 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57116003-E00 |
3 G 16mm² H07RN-F Black Neoprene
|
3 | 16 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57116004E-E00 |
4 G 16mm² H07RN-F Black Neoprene
|
4 | 16 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57116005E-E00 |
5 G 16mm² H07RN-F Black Neoprene
|
5 | 16 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57125001 |
1 x 25mm² H07RN-F Black Neoprene
|
1 | 25 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57125003-E00 |
3 G 25mm² H07RN-F Black Neoprene
|
3 | 25 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57125004E-E00 |
4 G 25mm² H07RN-F Black Neoprene
|
4 | 25 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57125005E-E00 |
5 G 25mm² H07RN-F Black Neoprene
|
5 | 25 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57135003-E00 |
3 G 35mm² H07RN-F Black Neoprene
|
3 | 35 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57135004E-E00 |
4 G 35mm² H07RN-F Black Neoprene
|
4 | 35 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57135005E-E00 |
5 G 35mm² H07RN-F Black Neoprene
|
5 | 35 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57150001-E00 |
1 x 50mm² H07RN-F Black Neoprene
|
1 | 50 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57150004E-E00 |
4 G 50mm² H07RN-F Black Neoprene
|
4 | 50 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57150005E-E00 |
5 G 50mm² H07RN-F Black Neoprene
|
5 | 50 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57170001-E00 |
1 x 70mm² H07RN-F Black Neoprene
|
1 | 70 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57170003-E00 |
3 G 70mm² H07RN-F Black Neoprene
|
3 | 70 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57170004E-E00 |
4 G 70mm² H07RN-F Black Neoprene
|
4 | 70 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57170005E-E00 |
5 G 70mm² H07RN-F Black Neoprene
|
5 | 70 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57195001-E00 |
1 x 95mm² H07RN-F Black Neoprene
|
1 | 95 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57195003-E00 |
3 G 95mm² H07RN-F Black Neoprene
|
3 | 95 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57195004E-E00 |
4 G 95mm² H07RN-F Black Neoprene
|
4 | 95 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57195005E-E00 |
5 G 95mm² H07RN-F Black Neoprene
|
5 | 95 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57112001-E00 |
1 x 120mm² H07RN-F Black Neoprene
|
1 | 120 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57112003-E00 |
3 G 120mm² H07RN-F Black Neoprene
|
3 | 120 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57112004E-E00 |
4 G 120mm² H07RN-F Black Neoprene
|
4 | 120 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57115001-E00 |
1 x 150mm² H07RN-F Black Neoprene
|
1 | 150 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57115004E-E00 |
4 G 150mm² H07RN-F Black Neoprene
|
4 | 150 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57118501-E00 |
1 x 185mm² H07RN-F Black Neoprene
|
1 | 185 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57118504E-E00 |
4 x 185mm² H07RN-F Black Neoprene
|
4 | 185 | Black | Neoprene | Eca | Datasheet | Get Quote | Get Quote | ||||||
|
|||||||||||||||
| 57124001-E00 |
1 x 240mm² H07RN-F Black Neoprene
|
1 | 240 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57124004E-E00 |
4 x 240mm² H07RN-F Black Neoprene
|
4 | 240 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
| 57130001-E00 |
1 x 300mm² H07RN-F Black Neoprene
|
1 | 300 | Black | Neoprene | Eca | Datasheet | Get Quote | |||||||
|
|||||||||||||||
