XAT Armoured Power Cable IEC 60092-353
XAT Armoured Power Cable IEC 60092-353
XAT power cables provide lightweight wiring in marine applications where mechanical protection is required and personnel safety in the event of a fire is important. Manufactured in accordance with European standard IEC 60092-353.
Manufacturers alternative reference: Nexans MPRXCX, Helkama LKSM-HF, Prysmian HFX-A.
Construction:XAT: Copper or tinned copper conductors, XLPE insulation, bedding, copper wire braid armour or tinned copper wire braid, SHF 1 Low Smoke Halogen Free sheath - black.

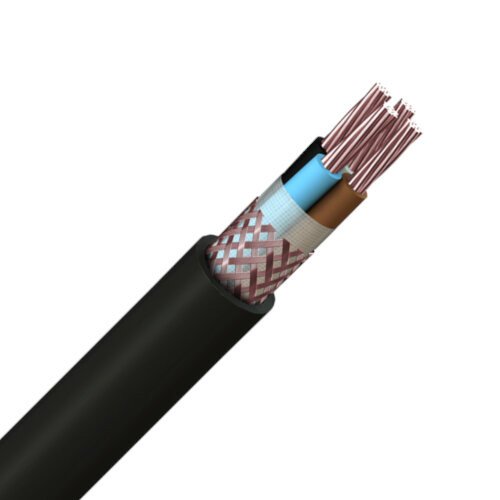

Image representative of product style, product supplied may vary.
| Voltage Rating: | 0.6/1kV |
| Conductor Stranding: | IEC 60228 Class 2 or Class 5, plain copper or tinned copper |
| Temperature Rating: | -15°C to +90°C |
| Bending Radius Static: | 6 x overall diameter |
| Flame Retardant: | IEC 60332-1-2, IEC 60332-3-22 Cat A |
| Smoke Emission: | IEC 61034-1 & 2 |
| Halogen Emission: | IEC 60754-1 & 2 |
| Manufactured To: | IEC 60092 series |
| 3rd Party Approvals: | Lloyds, DNV, ABS, BV and Rina. |
Approvals may vary between manufacturer brands. Please tell us at time of enquiry if you have a specific requirement.
Some versions replace the bedding with a separator tape which provides a smaller diameter cable. Please specify at time of enquiry if you have a preference.
Core Identification:
Manufacturers discretion in accordance with IEC 60092-353.
Generally colour coded up to 5 core and numbered cores above 5 core.
Cables including a green/yellow earth core are available on request.
Please check at time of enquiry if you have a specific preference.
Construction and technical information may vary between manufacturer brands. Please check at the time of order.
FS part no: XAT001502
FS part no: XAT001503
FS part no: XAT001504
FS part no: XAT001505
FS part no: XAT001507
FS part no: XAT001512
FFMC7 - SWA Firefly Metal Cleat, Cable Dia. 15.1 - 17.8mm
FFMC7KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 15.1 - 17.8mm
FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
EMC25NP - Dome Top EMC Glands-NP M25
EMC32NP-LP - Dome Top EMC Glands-NP-LP M32
TCCLSF02 - LSF Telecleat 12.2mm-16.7mm
ACC 16-19 - Aluminium Claw Cleat 16-19mm
FS part no: XAT001519
- FFMC8 - SWA Firefly Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFMC8KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC32NP - Dome Top EMC Glands-NP M32
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF03 - LSF Telecleat 14.6mm-19.8mm
- ACC 19-22 - Aluminium Claw Cleat 19-22mm
FS part no: XAT001527
- FFMC10 - SWA Firefly Metal Cleat, Cable Dia. 22.7 - 25.4mm
- FFMC10KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 22.7 - 25.4mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC40NP - Dome Top EMC Glands-NP M40
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF04 - LSF Telecleat 17.7mm-24.0mm
- ACC 22-25 - Aluminium Claw Cleat 22-25mm
FS part no: XAT001537
- FFMC11 - SWA Firefly Metal Cleat, Cable Dia. 25.3 - 27.7mm
- FFMC11KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 25.3 - 27.7mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC40NP - Dome Top EMC Glands-NP M40
- EMC50NP-LP - Dome Top EMC Glands-NP-LP M50
- TCCLSF05 - LSF Telecleat 21.7mm-28.5mm
FS part no: XAT002502
FS part no: XAT002503
FS part no: XAT002504
FS part no: XAT002505
FS part no: XAT002507
- FFMC6 - SWA Firefly Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFMC6KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC25NP - Dome Top EMC Glands-NP M25
- EMC32NP-LP - Dome Top EMC Glands-NP-LP M32
- TCCLSF01 - LSF Telecleat 10.5mm-14.5mm
- ACC 13-16 - Aluminium Claw Cleat 13-16mm
FS part no: XAT002512
- FFMC8 - SWA Firefly Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFMC8KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC32NP - Dome Top EMC Glands-NP M32
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF03 - LSF Telecleat 14.6mm-19.8mm
- ACC 16-19 - Aluminium Claw Cleat 16-19mm
FS part no: XAT002519
- FFMC9 - SWA Firefly Metal Cleat, Cable Dia. 20.2 - 22.8mm
- FFMC9KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 20.2 - 22.8mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC40NP - Dome Top EMC Glands-NP M40
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF04 - LSF Telecleat 17.7mm-24.0mm
- ACC 19-22 - Aluminium Claw Cleat 19-22mm
FS part no: XAT004002
FS part no: XAT004003
FS part no: XAT004003E
FS part no: XAT004004
- FFMC6 - SWA Firefly Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFMC6KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC25NP - Dome Top EMC Glands-NP M25
- EMC25NP-LP - Dome Top EMC Glands-NP-LP M25
- TCCLSF01 - LSF Telecleat 10.5mm-14.5mm
- ACC 10-13 - Aluminium Claw Cleat 10-13mm
FS part no: XAT004005
- FFMC6 - SWA Firefly Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFMC6KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC25NP - Dome Top EMC Glands-NP M25
- EMC32NP-LP - Dome Top EMC Glands-NP-LP M32
- TCCLSF02 - LSF Telecleat 12.2mm-16.7mm
- ACC 13-16 - Aluminium Claw Cleat 13-16mm
FS part no: XAT006001
FS part no: XAT006002
FS part no: XAT006003
- FFMC6 - SWA Firefly Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFMC6KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC25NP - Dome Top EMC Glands-NP M25
- EMC25NP-LP - Dome Top EMC Glands-NP-LP M25
- TCCLSF01 - LSF Telecleat 10.5mm-14.5mm
- ACC 10-13 - Aluminium Claw Cleat 10-13mm
FS part no: XAT006003E
- FFMC6 - SWA Firefly Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFMC6KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC25NP - Dome Top EMC Glands-NP M25
- EMC25NP-LP - Dome Top EMC Glands-NP-LP M25
- TCCLSF01 - LSF Telecleat 10.5mm-14.5mm
- ACC 10-13 - Aluminium Claw Cleat 10-13mm
FS part no: XAT006004
- FFMC6 - SWA Firefly Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFMC6KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC20NP - Dome Top EMC Glands-NP M20
- EMC32NP-LP - Dome Top EMC Glands-NP-LP M32
- TCCLSF02 - LSF Telecleat 12.2mm-16.7mm
- ACC 13-16 - Aluminium Claw Cleat 13-16mm
FS part no: XAT006005
- FFMC7 - SWA Firefly Metal Cleat, Cable Dia. 15.1 - 17.8mm
- FFMC7KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 15.1 - 17.8mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC25NP - Dome Top EMC Glands-NP M25
- EMC32NP-LP - Dome Top EMC Glands-NP-LP M32
- TCCLSF02 - LSF Telecleat 12.2mm-16.7mm
- ACC 13-16 - Aluminium Claw Cleat 13-16mm
FS part no: XAT010001
FS part no: XAT010003
- FFMC6 - SWA Firefly Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFMC6KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC25NP - Dome Top EMC Glands-NP M25
- EMC32NP-LP - Dome Top EMC Glands-NP-LP M32
- TCCLSF02 - LSF Telecleat 12.2mm-16.7mm
- ACC 13-16 - Aluminium Claw Cleat 13-16mm
FS part no: XAT010004
- FFMC7 - SWA Firefly Metal Cleat, Cable Dia. 15.1 - 17.8mm
- FFMC7KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 15.1 - 17.8mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC32NP - Dome Top EMC Glands-NP M32
- EMC32NP-LP - Dome Top EMC Glands-NP-LP M32
- TCCLSF03 - LSF Telecleat 14.6mm-19.8mm
- ACC 16-19 - Aluminium Claw Cleat 16-19mm
FS part no: XAT010005
- FFMC8 - SWA Firefly Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFMC8KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC32NP - Dome Top EMC Glands-NP M32
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF03 - LSF Telecleat 14.6mm-19.8mm
- ACC 16-19 - Aluminium Claw Cleat 16-19mm
FS part no: XAT016001
FS part no: XAT016003
- FFMC8 - SWA Firefly Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFMC8KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC32NP - Dome Top EMC Glands-NP M32
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF03 - LSF Telecleat 14.6mm-19.8mm
- ACC 16-19 - Aluminium Claw Cleat 16-19mm
FS part no: XAT016003E
- FFMC8 - SWA Firefly Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFMC8KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC32NP - Dome Top EMC Glands-NP M32
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF03 - LSF Telecleat 14.6mm-19.8mm
- ACC 16-19 - Aluminium Claw Cleat 16-19mm
FS part no: XAT016004
- FFMC8 - SWA Firefly Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFMC8KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC32NP - Dome Top EMC Glands-NP M32
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF04 - LSF Telecleat 17.7mm-24.0mm
- ACC 19-22 - Aluminium Claw Cleat 19-22mm
FS part no: XAT016005
- FFMC9 - SWA Firefly Metal Cleat, Cable Dia. 20.2 - 22.8mm
- FFMC9KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 20.2 - 22.8mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC40NP - Dome Top EMC Glands-NP M40
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF04 - LSF Telecleat 17.7mm-24.0mm
- ACC 22-25 - Aluminium Claw Cleat 22-25mm
FS part no: XAT025001
FS part no: XAT025003
- FFMC9 - SWA Firefly Metal Cleat, Cable Dia. 20.2 - 22.8mm
- FFMC9KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 20.2 - 22.8mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC40NP - Dome Top EMC Glands-NP M40
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF04 - LSF Telecleat 17.7mm-24.0mm
- ACC 22-25 - Aluminium Claw Cleat 22-25mm
FS part no: XAT025004
- FFMC10 - SWA Firefly Metal Cleat, Cable Dia. 22.7 - 25.4mm
- FFMC10KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 22.7 - 25.4mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC40NP - Dome Top EMC Glands-NP M40
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF05 - LSF Telecleat 21.7mm-28.5mm
- ACC 22-25 - Aluminium Claw Cleat 22-25mm
FS part no: XAT035001
- FFMC5 - SWA Firefly Metal Cleat, Cable Dia. 10.1 - 12.7mm
- FFMC5KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 10.1 - 12.7mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC25NP - Dome Top EMC Glands-NP M25
- EMC25NP-LP - Dome Top EMC Glands-NP-LP M25
- TCCLSF01 - LSF Telecleat 10.5mm-14.5mm
- ACC 10-13 - Aluminium Claw Cleat 10-13mm
FS part no: XAT035003
- FFMC10 - SWA Firefly Metal Cleat, Cable Dia. 22.7 - 25.4mm
- FFMC10KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 22.7 - 25.4mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC40NP - Dome Top EMC Glands-NP M40
- EMC50NP-LP - Dome Top EMC Glands-NP-LP M50
- TCCLSF05 - LSF Telecleat 21.7mm-28.5mm
- ACC 25-32 - Aluminium Claw Cleat 25-32mm
FS part no: XAT035004
- FFMC12 - SWA Firefly Metal Cleat, Cable Dia. 27.6 - 30.5mm
- FFMC12KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 27.6 - 30.5mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC50NP - Dome Top EMC Glands-NP M50
- EMC50NP-LP - Dome Top EMC Glands-NP-LP M50
- TCCLSF05 - LSF Telecleat 21.7mm-28.5mm
- ACC 25-32 - Aluminium Claw Cleat 25-32mm
FS part no: XAT050001
- FFMC6 - SWA Firefly Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFMC6KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 12.6 - 15.7mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC25NP - Dome Top EMC Glands-NP M25
- EMC32NP-LP - Dome Top EMC Glands-NP-LP M32
- TCCLSF02 - LSF Telecleat 12.2mm-16.7mm
- ACC 13-16 - Aluminium Claw Cleat 13-16mm
FS part no: XAT050003
- FFMC12 - SWA Firefly Metal Cleat, Cable Dia. 27.6 - 30.5mm
- FFMC12KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 27.6 - 30.5mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC50NP - Dome Top EMC Glands-NP M50
- EMC50NP-LP - Dome Top EMC Glands-NP-LP M50
- TCCLSF06 - LSF Telecleat 26.2mm-34.2mm
- ACC 25-32 - Aluminium Claw Cleat 25-32mm
FS part no: XAT050004
- FFMC14 - SWA Firefly Metal Cleat, Cable Dia. 30.4 - 35.5mm
- FFMC14KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 30.4 - 35.5mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC50NP - Dome Top EMC Glands-NP M50
- EMC63NP-LP - Dome Top EMC Glands-NP-LP M63
- TCCLSF06 - LSF Telecleat 26.2mm-34.2mm
- ACC 32-38 - Aluminium Claw Cleat 32-38mm
FS part no: XAT070001
- FFMC7 - SWA Firefly Metal Cleat, Cable Dia. 15.1 - 17.8mm
- FFMC7KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 15.1 - 17.8mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC32NP - Dome Top EMC Glands-NP M32
- EMC32NP-LP - Dome Top EMC Glands-NP-LP M32
- TCCLSF03 - LSF Telecleat 14.6mm-19.8mm
- ACC 16-19 - Aluminium Claw Cleat 16-19mm
FS part no: XAT070003
- FFMC14 - SWA Firefly Metal Cleat, Cable Dia. 30.4 - 35.5mm
- FFMC14KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 30.4 - 35.5mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC50NP - Dome Top EMC Glands-NP M50
- EMC63NP-LP - Dome Top EMC Glands-NP-LP M63
- TCCLSF06 - LSF Telecleat 26.2mm-34.2mm
- ACC 32-38 - Aluminium Claw Cleat 32-38mm
FS part no: XAT070004
FS part no: XAT095001
- FFMC8 - SWA Firefly Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFMC8KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 17.7 - 20.3mm
- FFAMC1220 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 12.7 - 20mm
- EMC32NP - Dome Top EMC Glands-NP M32
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF03 - LSF Telecleat 14.6mm-19.8mm
- ACC 19-22 - Aluminium Claw Cleat 19-22mm
FS part no: XAT095003
FS part no: XAT120001
- FFMC10 - SWA Firefly Metal Cleat, Cable Dia. 22.7 - 25.4mm
- FFMC10KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 22.7 - 25.4mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC40NP - Dome Top EMC Glands-NP M40
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF04 - LSF Telecleat 17.7mm-24.0mm
- ACC 22-25 - Aluminium Claw Cleat 22-25mm
FS part no: XAT120003
FS part no: XAT150001
- FFMC10 - SWA Firefly Metal Cleat, Cable Dia. 22.7 - 25.4mm
- FFMC10KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 22.7 - 25.4mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC40NP - Dome Top EMC Glands-NP M40
- EMC40NP-LP - Dome Top EMC Glands-NP-LP M40
- TCCLSF04 - LSF Telecleat 17.7mm-24.0mm
- ACC 22-25 - Aluminium Claw Cleat 22-25mm
FS part no: XAT150003
FS part no: XAT185001
- FFMC11 - SWA Firefly Metal Cleat, Cable Dia. 25.3 - 27.7mm
- FFMC11KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 25.3 - 27.7mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC40NP - Dome Top EMC Glands-NP M40
- EMC50NP-LP - Dome Top EMC Glands-NP-LP M50
- TCCLSF05 - LSF Telecleat 21.7mm-28.5mm
- ACC 25-32 - Aluminium Claw Cleat 25-32mm
FS part no: XAT240001
- FFMC12 - SWA Firefly Metal Cleat, Cable Dia. 27.6 - 30.5mm
- FFMC12KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 27.6 - 30.5mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC50NP - Dome Top EMC Glands-NP M50
- EMC50NP-LP - Dome Top EMC Glands-NP-LP M50
- TCCLSF06 - LSF Telecleat 26.2mm-34.2mm
- ACC 25-32 - Aluminium Claw Cleat 25-32mm
FS part no: XAT300001
- FFMC14 - SWA Firefly Metal Cleat, Cable Dia. 30.4 - 35.5mm
- FFMC14KH - SWA Quick-Fit Keyhole Metal Cleat, Cable Dia. 30.4 - 35.5mm
- FFAMC2035 - SWA Firefly Adjustable Metal Cleat, Cable Dia. 20 - 35.5mm
- EMC50NP - Dome Top EMC Glands-NP M50
- EMC63NP-LP - Dome Top EMC Glands-NP-LP M63
- TCCLSF06 - LSF Telecleat 26.2mm-34.2mm
- ACC 32-38 - Aluminium Claw Cleat 32-38mm
Order by 4.30pm for delivery by
| Code | Description | Cores | mm² | Colour | Alternative to | Downloads | Pack Size | QTY | Price | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XAT001502 |
2 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
2 | 1.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet |
£0.00
-
+
Please select a packsize
|
||||||
|
|||||||||||||
| XAT001503 |
3 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 1.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | ||||||
|
|||||||||||||
| XAT001504 |
4 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 1.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet |
£0.00
-
+
Please select a packsize
|
||||||
|
|||||||||||||
| XAT001505 |
5 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 1.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT001507 |
7 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
7 | 1.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT001512 |
12 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
12 | 1.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT001519 |
19 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
19 | 1.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT001527 |
27 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
27 | 1.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT001537 |
37 x 1.5mm² XAT Power to IEC 60092-350 Black LSHF
|
37 | 1.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT002502 |
2 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
2 | 2.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT002503 |
3 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 2.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT002504 |
4 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 2.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT002505 |
5 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 2.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT002507 |
7 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
7 | 2.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT002512 |
12 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
12 | 2.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT002519 |
19 x 2.5mm² XAT Power to IEC 60092-350 Black LSHF
|
19 | 2.5 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT004002 |
2 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
|
2 | 4 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT004003 |
3 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 4 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT004003E |
3 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
|
3 | 4 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT004004 |
4 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 4 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT004005 |
5 x 4.0mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 4 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT006001 |
1 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 6 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT006002 |
2 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
|
2 | 6 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT006003 |
3 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 6 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT006003E |
3 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
|
3 | 6 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT006004 |
4 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 6 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT006005 |
5 x 6.0mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 6 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT010001 |
1 x 10mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 10 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT010003 |
3 x 10mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 10 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT010004 |
4 x 10mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 10 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT010005 |
5 x 10mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 10 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT016001 |
1 x 16mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 16 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT016003 |
3 x 16mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 16 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT016003E |
3 x 16mm² XAT Power to IEC 60092-350 Black LSHF with green/yellow
|
3 | 16 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT016004 |
4 x 16mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 16 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT016005 |
5 x 16mm² XAT Power to IEC 60092-350 Black LSHF
|
5 | 16 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT025001 |
1 x 25mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 25 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT025003 |
3 x 25mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 25 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT025004 |
4 x 25mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 25 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT035001 |
1 x 35mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 35 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT035003 |
3 x 35mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 35 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT035004 |
4 x 35mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 35 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT050001 |
1 x 50mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 50 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT050003 |
3 x 50mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 50 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT050004 |
4 x 50mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 50 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT070001 |
1 x 70mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 70 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT070003 |
3 x 70mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 70 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT070004 |
4 x 70mm² XAT Power to IEC 60092-350 Black LSHF
|
4 | 70 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT095001 |
1 x 95mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 95 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT095003 |
3 x 95mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 95 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT120001 |
1 x 120mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 120 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT120003 |
3 x 120mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 120 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT150001 |
1 x 150mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 150 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT150003 |
3 x 150mm² XAT Power to IEC 60092-350 Black LSHF
|
3 | 150 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT185001 |
1 x 185mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 185 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT240001 |
1 x 240mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 240 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
| XAT300001 |
1 x 300mm² XAT Power to IEC 60092-350 Black LSHF
|
1 | 300 | Black |
MPRXCX LKSM-HF HFX-A SH-PC-A |
Datasheet | Get Quote | Get Quote | |||||
|
|||||||||||||
Please contact us to request a quote for this item.
XAT Armoured Power Cable IEC 60092-353
Part No. G1447A sales representative will contact you within 3 hours, Monday to Friday 8am - 5pm.
Alternatively contact us on 01727 840 841
Request sent
Continue ShoppingPeople also viewed...
![XT-Unarmoured-Power-Cable-IEC-60092-353-Grid-image]()
XT Unarmoured Power Cable IEC 60092-353Code: G1441![XAT-331-Fire-Resistant-Armoured-Power-Cable-IEC-60092-353-Grid-image]()
XAT-331 Fire Resistant Armoured Power Cable IEC 60092-353Code: G1450![XT-331-Unamoured-Fire-Resistant-Power-Cable-to-IEC-60092-353-Grid-Image]()
XT-331 Unarmoured Fire Resistant Power Cable to IEC 60092-353Code: G1553![XTS-Single-Core-Cable-to-IEC-60092-Grid-Image]()
XTS Single Core Cable to IEC 60092Code: F1473![BS-6883-0.6/1kV-Shipwiring-Power-Cable-658-SW4-Armoured-Grid-image]()
BS 6883 0.6/1kV Shipwiring Power 658-SW4 Armoured CableCode: G1435
